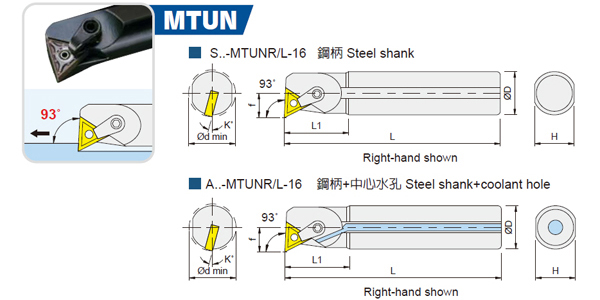

MTUN 內徑車刀
產品規格
Steel shank Item code
Dimensions,mm
Insert
Spare parts
Weight
(KG)
無水孔Non-coolant
水孔Coolant
D
L
L1
F
H
K°
dmin
S20R-MTUNR/L-16
A20R-MTUNR/L-16
20
200
40
13
18
15
25
TN..1604..
①
0.49
S25R-MTUNR/L-16
A25R-MTUNR/L-16
25
200
40
15.5
23
13
30
0.77
S32S-MTUNR/L-16
A32S-MTUNR/L-16
32
250
48
19.5
30
13
40
TN..1604..
②
1.58
S40T-MTUNR/L-16
A40T-MTUNR/L-16
40
300
55
25.5
37
10
50
2.96
S50U-MTUNR/L-16
A50U-MTUNR-16
50
350
60
30.5
47
9
60
5.40
S50V-MTUNR/L-16
A50V-MTUNR-16
50
400
60
30.5
47
9
60
6.17
S60U-MTUNR/L-16
60
350
60
35.5
57
8
70
7.77
S60V-MTUNR/L-16
60
400
60
35.5
57
8
70
8.88
Carbide shank Item code
Dimensions,mm
Insert
Spare parts
Weight
(KG)
無水孔Non-coolant
水孔Coolant
D
L
L1
F
H
K°
dmin
C20R-MTUNR/L-16
20
200
40
13
18
15
25
TN..1604..
①
0.81
C20S-MTUNR/L-16
20
250
40
13
18
15
25
1.08
C25S-MTUNR/L-16
E25S-MTUNR/L-16
25
250
40
15.5
23
13
30
1.58
英制
產品規格
Steel shank Item code
Dimensions,mm
Insert
Spare parts
Weight
(KG)
無水孔Non-coolant
水孔Coolant
D
L
L1
F
H
K°
dmin
IS12R-MTUNR-3
IA12R-MTUNR-3
0.75
8
1.575
0.5
0.709
15
0.93
TN..33..
(TN..1604)
①
0.45
IS16R-MTUNR-3
1
8
1.575
0.61
0.906
13
1.18
0.80
