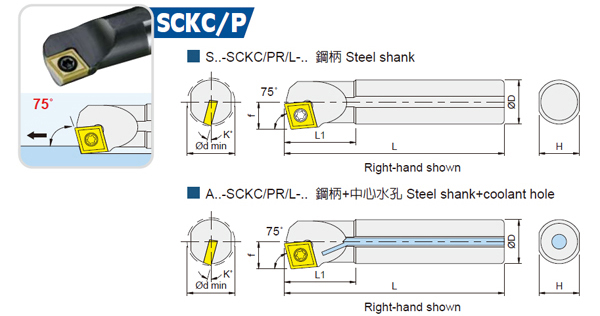

SCKP 內徑車刀
產品規格
Steel shank Item code
Dimensions,mm
Insert
Spare parts
Weight
(KG)
無水孔Non-coolant
水孔Coolant
D
L
L1
F
H
K°
dmin
S08K-SCKCR/L-06
A08K-SCKCR/L-06
8
125
20
5
7
15
10
CC..0602..
①
0.07
S10K-SCKCR/L-06
A10K-SCKCR/L-06
10
125
22
6
9
13
12
0.09
S12M-SCKCR/L-06
A12M-SCKCR/L-06
12
150
26
8
11
10
16
0.13
S16Q-SCKCR/L-06
A16Q-SCKCR/L-06
16
180
32
10
15
7
20
0.28
S12M-SCKCR/L-09
A12M-SCKCR/L-09
12
150
28
8
11
11
16
CC..09T3..
②
0.13
S16Q-SCKCR/L-09
A16Q-SCKCR/L-09
16
180
32
10
15
7
20
0.28
S20R-SCKCR/L-09
A20R-SCKCR/L-09
20
200
40
12.5
18
5
25
③
0.49
S16Q-SCKPR/L-09
A16Q-SCKPR/L-09
16
180
32
10
15
7
20
CP..0903..
④
0.28
Carbide shank Item code
Dimensions,mm
Insert
Spare parts
Weight
(KG)
無水孔Non-coolant
水孔 Coolant
D
L
L1
F
H
K°
dmin
C08K-SCKCR-06
8
125
20
5
7.2
15
10
CC..0602..
①
0.09
C12K-SCKCR-06
12
180
26
8
11.2
10
16
0.29
