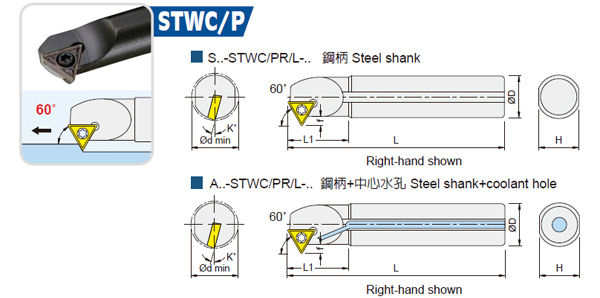

STWP 內徑車刀
產品規格
Steel shank Item code
Dimensions,mm
Insert
Spare parts
Weight
(KG)
無水孔Non-coolant
水孔Coolant
D
L
L1
F
S
H
K°
dmin
S0806K-STWBR/L-06-L15
A0806K-STWBR-06-L15
8
125
15
4.5
1.5
7
15
9
TB..0601..
①
0.07
S08K-STWCR/L-09
A08K-STWCR/L-09
8
125
23
6
2
7
15
11
TC..0902..
②
0.07
S10K-STWCR/L-11
A10K-STWCR/L-11
10
125
23
7.5
2.5
9
15
13
TC..1102..
③
0.09
S12M-STWCR/L-11
A12M-STWCR/L-11
12
150
30
8.5
2.5
11
13
16
0.13
S14M-STWCR/L-11
14
150
30
9.5
2.5
13
11
18
0.18
S16Q-STWCR/L-11
A16Q-STWCR/L-11
16
180
35
10.5
2.5
15
10
20
0.28
S20R-STWCR/L-11
A20R-STWCR/L-11
20
200
40
12.5
2.5
18
7
25
0.49
S20R-STWCR/L-16
A20R-STWCR/L-16
20
200
40
14.5
4.5
18
8
26
TC..16T3..
④
0.49
S25R-STWCR/L-16
A25R-STWCR/L-16
25
200
45
17
4.5
23
6
30
0.77
S32S-STWCR/L-16
A32S-STWCR/L-16
32
250
50
20.5
4.5
30
4
40
1.58
S08K-STWPR/L-08
A08K-STWPR/L-08
8
125
20
6
2
7
15
11
TP..0802..
⑤
0.07
S08K-STWPR/L-09
A08K-STWPR/L-09
8
125
23
6
2
7
15
11
TP..0902..
⑥
0.08
S10K-STWPR/L-09
A10K-STWPR/L-09
10
125
23
7.5
2.5
9
15
13
0.09
S10K-STWPR/L-11
A10K-STWPR/L-11
10
125
23
7.5
2.5
9
15
13
TP..1103..
⑦
0.09
S12M-STWPR/L-11
A12M-STWPR/L-11
12
150
30
8.5
2.5
11
13
16
0.13
S14M-STWPR/L-11
14
150
30
9.5
2.5
13
11
18
0.18
S16Q-STWPR/L-11
A16Q-STWPR/L-11
16
180
35
10.5
2.5
15
10
20
0.28
S20R-STWPR/L-11
A20R-STWPR/L-11
20
200
40
12.5
2.5
18
7
25
0.49
S20R-STWPR/L-1603
A20R-STWPR/L-1603
20
200
40
14.5
4.5
18
8
26
TP..1603..
⑧
0.49
Carbide
shank Item code
Dimensions,mm
Insert
Spare parts
Weight
(KG)
無水孔Non-coolant
水孔Coolant
D
L
L1
F
S
H
K°
dmin
C12M-STWCR-11
12
150
30
8.5
2.5
11.2
13
16
TC..1102..
③
0.24
C12Q-STWCR-11
E12Q-STWCR-11
12
180
30
8.5
2.5
11.2
13
16
0.29
C16R-STWCR-11
16
200
35
10.5
2.5
15.2
10
20
0.58
C08K-STWPR-09
8
125
23
6
2
7.2
15
11
TP..0902..
⑥
0.09
C12M-STWPR-11
12
150
30
8.5
2.5
11.2
13
16
TP..1103..
⑦
0.24
