SVVC 內徑車刀
產品規格

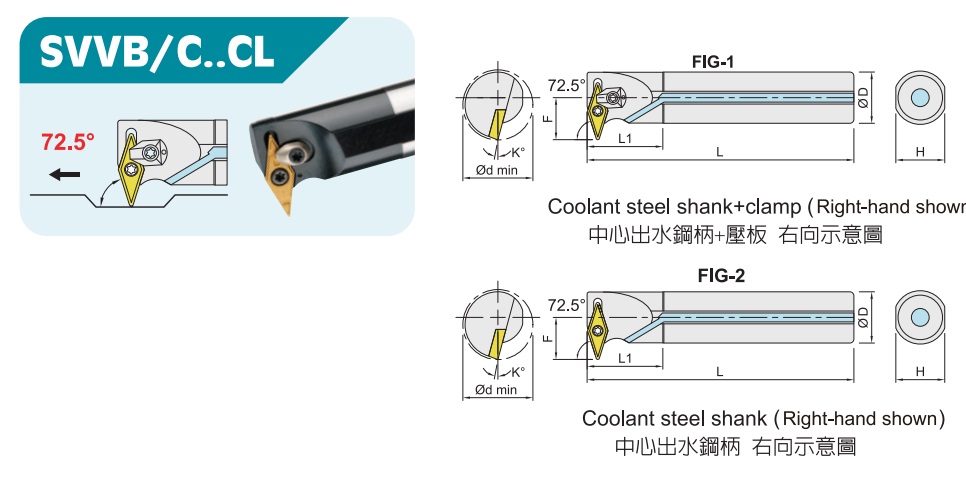

FIG-1 Steel shank Item code
Dimensions,mm
Insert
Spare parts
Weight
(KG)
無水孔Non-coolant
水孔Coolant
D
L
L1
F
H
K°
dmin
S16Q-SVVBR/L-11CL
A16Q-SVVBR/L-11CL
16
180
35
13
15
6
25
VB..1103..
①
0.28
S20R-SVVBR/L-11CL
A20R-SVVBR/L-11CL
20
200
38
16
18
5
32
0.49
S25R-SVVBR/L-16CL
A25R-SVVBR/L-16CL
25
200
45
20.5
23
5
34
VB..1604..
②
0.77
S25S-SVVBR/L-16CL
A25S-SVVBR/L-16CL
25
250
45
20.5
23
5
34
0.96
S32S-SVVBR/L-16CL
A32S-SVVBR/L-16CL
32
250
50
25.5
30
5
42
③
1.59
S16Q-SVVCR/L-11CL
A16Q-SVVCR/L-11CL
16
180
35
13
15
6
25
VC..1103..
①
0.28
S20R-SVVCR/L-11CL
A20R-SVVCR/L-11CL
20
200
38
16
18
5
32
0.49
S25R-SVVCR/L-16CL
A25R-SVVCR/L-16CL
25
200
45
20.5
23
5
34
VC..1604..
②
0.77
S25S-SVVCR/L-16CL
A25S-SVVCR/L-16CL
25
250
45
20.5
23
5
34
0.96
S32S-SVVCR/L-16CL
A32S-SVVCR/L-16CL
32
250
50
25.5
30
5
42
③
1.59
