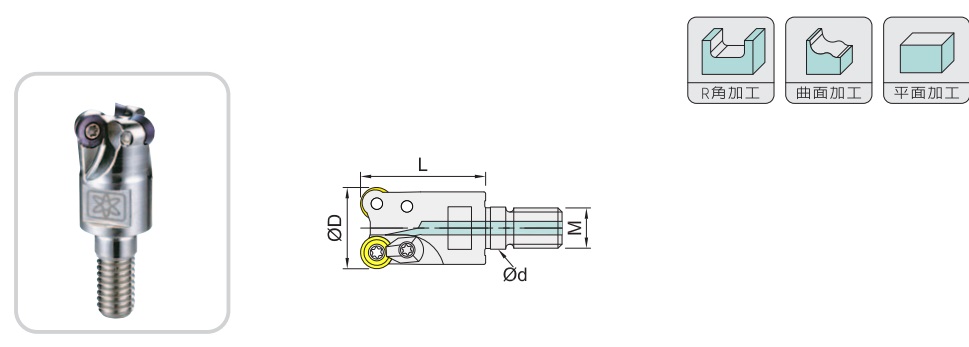

HAR-A 圓刃銑刀鎖牙式


產品規格
Item codeDimensions,mmTeethInsertSpare
parts		Weight
KG
無水孔Non coolant水孔CoolantDdLM
ARD051-D102-MD10 105.516M52RD..0501..①0.02
ARD051-D112-MD10 115.518M520.03
ARD051-D122-MD11 126.518M620.03
ARD051-D123-MD11 126.518M630.03
ARD051-D132-MD11 136.518M620.03
ARD051-D133-MD11 136.518M630.03
ARD051-D133-MD11-M08 138.518M830.03
ARD051-D174-MD14 178.523M840.04
HAR08-162-MD14 168.523M82RD..0802②0.05
HAR08-172-MD14 178.523M820.05
HAR08-202-MD18 2010.530M102RD..0802③0.07
HAR08-212-MD18 2110.530M1020.07
HAR08-253-MD23 2512.535M1230.15
HAR10-202-MD18 2010.530M102RD..10T3④0.08
HAR10-212-MD18 2110.530M102⑤0.09
HAR10-252-MD23 2512.535M122⑥0.12
HAR10-253-MD23 2512.535M123⑤0.12
HAR10-262-MD23 2612.535M122⑥0.12
HAR10-263-MD23 2612.535M123⑤0.12
HAR10-302-MD29 301743M162⑥0.23
HAR10-323-MD29 321743M1630.22
HAR10-353-MD29 351743M1630.24
HAR10-354-MD29 351743M1640.24
HAR10-404-MD29 401743M1640.25
HAR10-424-MD29 421743M1640.27
HAR10-425-MD29 421743M165⑤0.30
 HAR10-426-AMD29421743M1660.27
HAR12-252-MD23 2512.535M122RD..1204⑦0.14
HAR12-353-MD29HAR12-353-AMD29351743M1630.21
HAR12-404-MD29 401743M1640.27
HAR12-424-MD29HAR12-424-AMD29421743M1640.25



InsertSpare partsScrewWrenchClampWrench
RD..0501..①MS1804AETF06----
RD..0802..②MS3006BETF09----
RD..0802..③MS3008BETF09MC35-3VETF15
RD..10T3..④MS4008BETF15----
RD..10T3..⑤MS4009BETF15----
RD..10T3..⑥MS4009B--MC35-3VETF15
RD..1204..⑦MS4009A--MC35-3VETF15



被切削材
Workpiece material		Steel 鋼P
Stainless steel 不鏽鋼M
Cast iron 鑄鐵K
Non-ferrous metal 非鐵金屬N
Insert ShapeDescriptionGRADE 材質Dimensions,mm
Coated 塗層
CY250JP4060IcSd1
RDMW0501MOEN 5.01.51.9
RDMT0802MOTN8.02.383.4
RDMT10T3MOTN10.03.974.5
RDMT1204MOTN12.04.764.5
