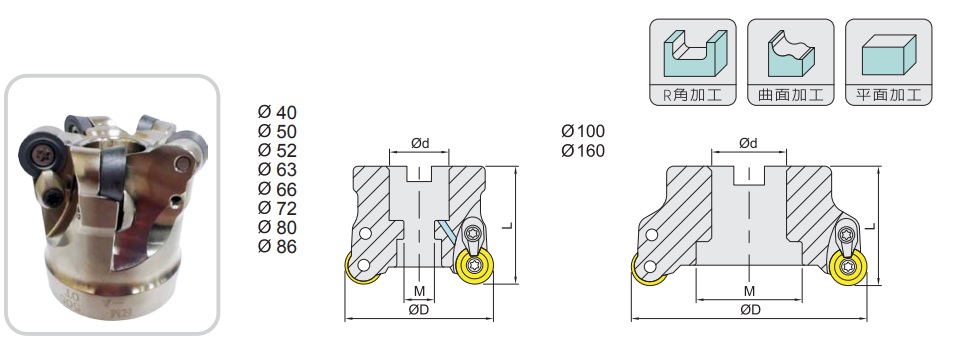

HAR-B 圓刃銑刀刀盤
產品規格
Metric specifications
Item code
Dimensions,mm
Teeth
Insert
Spare parts
Weight
KG
無水孔Non-coolant
水孔Coolant
D
d
L
M
RM-5R405-16.0
40
16.0
40
9
5
RD..10T3..
①
0.21
RM-5R504-22.0
50
22.0
40
11
4
0.44
RM-5R504-22.0-50H
50
22.0
50
11
4
0.44
RM-5R505-22.0
50
22.0
40
11
5
0.41
RM-5R505-22.0-50H
50
22.0
50
11
5
0.41
RM-5R525-22.0
52
22.0
50
11
5
0.47
RM-6R404-16.0
RM-6R404-A16.0
40
16.0
50
9
4
RD..1204
③
0.39
RM-6R504-22.0
50
22.0
50
11
4
0.39
RM-6R505-22.0
RM-6R505-A22.0
50
22.0
50
11
5
RD..1204
②
0.41
RM-6R525-22.0
52
22.0
50
11
5
0.43
RM-6R635-22.0
63
22.0
50
11
5
RD..1204
③
0.70
RM-6R636-22.0
RM-6R636-A22.0
63
22.0
50
11
6
0.72
RM-6R666-22.0
RM-6R666-A22.0
66
22.0
50
11
6
0.76
RM-6R635-27.0
63
27.0
50
13
5
0.64
RM-6R666-27.0
RM-6R666-A27.0
66
27.0
50
13
6
0.76
RM-6R805-27.0
80
27.0
50
13
5
1.00
RM-6R806-27.0
80
27.0
50
13
6
0.98
RM-6R807-A27.0
80
27.0
50
13
7
1.00
RM-8R503-22.0 ※
RM-8R503-A22.0 ※
50
22.0
50
11
3
RD..1604
④
0.44
RM-8R524-22.0
52
22.0
50
11
4
0.40
RM-8R634-22.0
63
22.0
50
11
4
0.54
RM-8R665-22.0
66
22.0
50
11
5
0.59
RM-8R635-27.0
63
27.0
50
13
5
0.54
RM-8R664-27.0
66
27.0
50
13
4
0.63
RM-8R665-27.0
66
27.0
50
13
5
0.59
RM-8R805-27.0
80
27.0
50
13
5
0.94
RM-8R806-27.0
80
27.0
50
13
6
0.91
RM-8R1006-32.0
100
32.0
50
45
6
1.32
※表示另附刀把螺絲HTM1045HS ( ※The mill equips with a cap screw HTM1045HS)
Inch specifications
Item code
Dimensions,mm
Teeth
Insert
Spare parts
Weight
KG
無水孔Non-coolant
水孔Coolant
D
d
L
M
RM-5R504-25.4
50
25.4
50
13
4
RD..10T3..
①
0.41
RM-5R635-25.4
RM-5R635-A25.4
63
25.4
50
13
5
0.65
RM-5R806-25.4
80
25.4
50
13
6
1.05
RM-5R866-25.4
86
25.4
50
13
6
1.23
RM-6R504-25.4
50
25.4
50
13
4
RD..1204
③
0.36
RM-6R635-25.4
63
25.4
50
13
5
0.66
RM-6R665-25.4
66
25.4
50
13
5
0.72
RM-6R806-25.4
80
25.4
50
13
6
1.01
RM-8R633-25.4
63
25.4
50
13
3
RD..1604
④
0.61
RM-8R634-25.4
63
25.4
50
13
4
0.55
RM-8R635-25.4
63
25.4
50
13
5
0.52
RM-8R664-25.4
66
25.4
50
13
4
0.65
RM-8R665-25.4
66
25.4
50
13
5
0.63
RM-8R724-25.4
72
25.4
50
13
4
0.72
RM-8R805-25.4
80
25.4
50
13
5
0.94
RM-8R1006-31.75
100
31.75
50
45
6
1.32
RM-8R16008-50.8
160
50.8
60
64
8
4.10
Insert
Spare parts
Screw
Wrench
Clamp
Wrench
RD..10T3..
①
MS4009B
--
MC35-3V
ETF15
RD..1204..
②
MS4009A
--
MC35-3V
ETF15
RD..1204..
③
MS4011A
--
MC35-3V
ETF15
RD..1604..
④
MS5011A
--
MC50V
ETF20
被切削材
Workpiece material
Steel 鋼
P
Stainless steel 不鏽鋼
M
Cast iron 鑄鐵
K
Non-ferrous metal 非鐵金屬
N
Insert Shape
Description
GRADE 材質
Dimensions,mm
Coated 塗層
CY250
JP4060
Ic
S
d1
RDMT10T3MOTN
10.0
3.97
4.5
RDMT1204MOTN
12.0
4.76
4.5
RDMX1604MOTN
16.0
4.76
5.5
