TBEC 固定式粗搪刀盤


產品規格

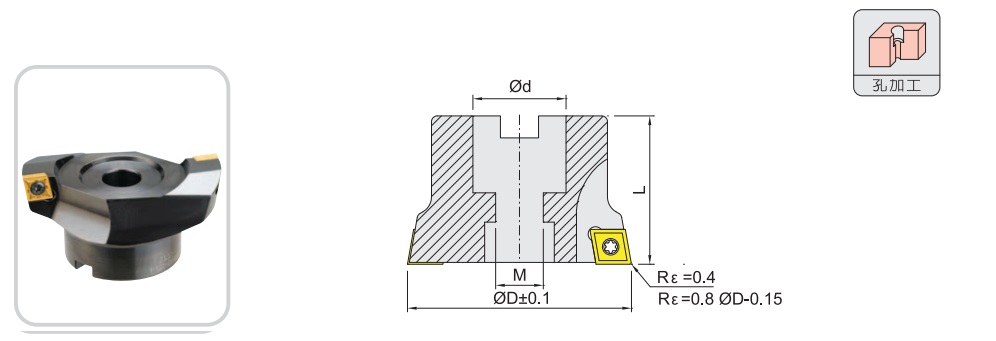

FIG-1 ltem code
(d=22.0)		FIG-1 ltem code
(d=25.4)		Insert
Insert		FIG-1 ltem code
(d=22.0,25.4)		Insert
Insert		D
Rε=0.4		Teeth
TB45-22.0-CC09 CC..09T304  44.82
TB46-22.0-CC0945.8
TB47-22.0-CC0946.8
TB48-22.0-CC0947.8
TB49-22.0-CC0948.8
TB50-22.0-CC09TB50-25.4-CC0949.8
TB51-22.0-CC09TB51-25.4-CC09CC..09T304　CC..12040450.82
TB52-22.0-CC09TB52-25.4-CC0951.8
TB53-22.0-CC09TB53-25.4-CC0952.8
TB54-22.0-CC09TB54-25.4-CC0953.8
TB55-22.0-CC09TB55-25.4-CC09TB55-22.0-CC1254.8
TB56-22.0-CC09TB56-25.4-CC09CC..09T304TB56-22.0-CC12CC..12040455.82
TB57-22.0-CC09TB57-25.4-CC09TB57-22.0-CC1256.8
TB58-22.0-CC09TB58-25.4-CC09TB58-22.0-CC1257.8
TB59-22.0-CC09TB59-25.4-CC09TB59-22.0-CC1258.8
TB60-22.0-CC09TB60-25.4-CC09TB60-22.0-CC1259.8
TB61-22.0-CC09TB61-25.4-CC09CC..09T304TB61-25.4-CC12CC..12040460.82
TB62-22.0-CC09TB62-25.4-CC09TB62-25.4-CC1261.8
TB63-22.0-CC09TB63-25.4-CC09TB63-25.4-CC1262.8
TB64-22.0-CC09TB64-25.4-CC09TB64-25.4-CC1263.8
TB65-22.0-CC09TB65-25.4-CC09TB65-25.4-CC1264.8
TB66-22.0-CC09TB66-25.4-CC09CC..09T304TB66-25.4-CC12CC..12040465.82
TB67-22.0-CC09TB67-25.4-CC09TB67-25.4-CC1266.8
TB68-22.0-CC09TB68-25.4-CC09TB68-25.4-CC1267.8
TB69-22.0-CC09TB69-25.4-CC09TB69-25.4-CC1268.8
TB70-22.0-CC09TB70-25.4-CC09TB70-25.4-CC1269.8
TB71-22.0-CC09TB71-25.4-CC09CC..09T304TB71-25.4-CC12CC..12040470.82
TB72-22.0-CC09TB72-25.4-CC09TB72-25.4-CC1271.8
　　TB73-25.4-CC09TB73-25.4-CC1272.8
TB74-25.4-CC09TB74-25.4-CC1273.8
TB75-22.0-CC09TB75-25.4-CC09TB75-25.4-CC1274.8
　　　　　TB76-25.4-CC09CC..09T304TB76-25.4-CC12CC..12040475.82
TB77-25.4-CC09TB77-25.4-CC1276.8
TB78-25.4-CC09TB78-25.4-CC1277.8
TB79-25.4-CC09TB79-25.4-CC1278.8
TB80-25.4-CC09TB80-25.4-CC1279.8

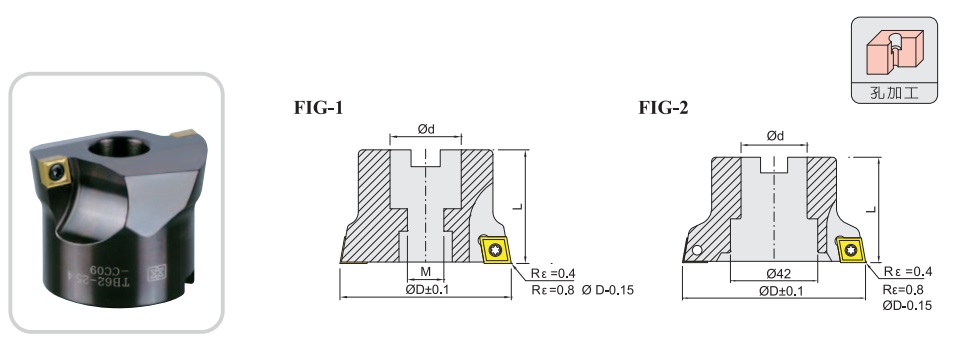

FIG-1 ltem code
(d=25.4)		Insert
Insert		FIG-1 ltem code
(d=25.4)		FIG-1 ltem code
(d=31.75)		FIG-2 ltem code
(d=31.75)		Insert
Insert		D
Rε=0.4		Teeth
TB81-25.4-CC09CC..09T304TB81-25.4-CC12  CC..12040480.82
TB82-25.4-CC09TB82-25.4-CC1281.8
TB83-25.4-CC09TB83-25.4-CC1282.8
TB84-25.4-CC09TB84-25.4-CC1283.8
TB85-25.4-CC09TB85-25.4-CC1284.8
TB86-25.4-CC09CC..09T304TB86-25.4-CC12　 CC..12040485.82
TB87-25.4-CC09TB87-25.4-CC1286.8
TB88-25.4-CC09TB88-25.4-CC1287.8
TB89-25.4-CC09TB89-25.4-CC1288.8
TB90-25.4-CC09TB90-25.4-CC1289.8
TB91-25.4-CC09CC..09T304TB91-25.4-CC12　 CC..12040490.82
TB92-25.4-CC09TB92-25.4-CC1291.8
TB93-25.4-CC09TB93-25.4-CC1292.8
TB94-25.4-CC09TB94-25.4-CC1293.8
TB95-25.4-CC09TB95-25.4-CC1294.8
TB96-25.4-CC09CC..09T304TB96-25.4-CC12　 CC..12040495.82
　TB97-25.4-CC1296.8
TB98-25.4-CC09TB98-25.4-CC1297.8
　TB99-25.4-CC1298.8
TB100-25.4-CC09TB100-25.4-CC12TB100-31.75-CC12TB100-31.75-CC12F99.8
　　　CC..09T304TB101-25.4-CC12TB101-31.75-CC12 CC..120404100.82
TB102-25.4-CC12TB102-31.75-CC12101.8
　　TB103-31.75-CC12102.8
TB104-31.75-CC12103.8
TB105-25.4-CC09TB105-25.4-CC12TB105-31.75-CC12TB105-31.75-CC12F104.8
 CC..09T304 TB106-31.75-CC12 CC..120404105.82
TB107-31.75-CC12106.8
TB108-25.4-CC09TB108-25.4-CC12TB108-31.75-CC12107.8
  TB109-31.75-CC12108.8
TB110-25.4-CC09TB110-25.4-CC12TB110-31.75-CC12TB110-31.75-CC12F109.8
　CC..09T304　TB111-31.75-CC12 CC..120404110.82
TB112-25.4-CC09TB112-25.4-CC12TB112-31.75-CC12111.8
　　　　TB113-31.75-CC12112.8
TB114-31.75-CC12113.8
TB115-25.4-CC09TB115-25.4-CC12TB115-31.75-CC12TB115-31.75-CC12F114.8
 CC..09T304　　TB116-31.75-CC12 CC..120404115.82
TB117-31.75-CC12116.8
TB118-25.4-CC12TB118-31.75-CC12117.8
　TB119-31.75-CC12118.8
TB120-25.4-CC09TB120-25.4-CC12TB120-31.75-CC12TB120-31.75-CC12F119.8
　CC..09T304　TB121-31.75-CC12 CC..120404120.82
TB122-25.4-CC09　TB122-31.75-CC12121.8
 TB123-31.75-CC12122.8
TB124-31.75-CC12123.8
TB125-31.75-CC12124.8
　　　TB126-31.75-CC12 CC..120404125.82
TB127-31.75-CC12126.8
TB128-31.75-CC12127.8
TB129-31.75-CC12128.8
TB130-31.75-CC12129.8



InsertScrew
 		Wrench
CC..060204MS2506AETF09
CC..09T304MS4011AETF15
CC..120404MS5011AETF20




Dimensions,mm

dML
TB...-22.0-...22.01150
TB...-25.4-...25.41350
TB...-31.75-...31.751350



FIG-1 ltem code
(d=31.75)		ltem codeltem codelnsert
Insert		D
Rε=0.4		Teeth
TB131-31.75-CC12　　　　　　　　　　CC..120404130.82
TB132-31.75-CC12131.8
TB133-31.75-CC12132.8
TB134-31.75-CC12133.8
TB135-31.75-CC12134.8
TB136-31.75-CC12　　　　　　　　　　CC..120404135.82
TB137-31.75-CC12136.8
TB138-31.75-CC12137.8
TB139-31.75-CC12138.8
TB140-31.75-CC12139.8
TB141-31.75-CC12　　　　　　　　　　CC..120404140.82
TB142-31.75-CC12141.8
TB143-31.75-CC12142.8
TB144-31.75-CC12143.8
TB145-31.75-CC12144.8
TB146-31.75-CC12　　　　　　　　　　CC..120404145.82
TB147-31.75-CC12146.8
TB148-31.75-CC12147.8
TB149-31.75-CC12148.8
TB150-31.75-CC12149.8
TB151-31.75-CC12　　　　　　　　CC..120404150.82
TB155-31.75-CC12154.8
TB156-31.75-CC12155.8
TB160-31.75-CC12159.8
TB161-31.75-CC12　　　　　　　　CC..120404160.82
TB165-31.75-CC12164.8
TB170-31.75-CC12169.8
TB175-31.75-CC12　　　　　　　　CC..120404174.82
TB185-31.75-CC12184.8
TB187-31.75-CC12186.8
TB190-31.75-CC12189.8
TB195-31.75-CC12　　　　　　CC..120404194.82
TB200-31.75-CC12199.8
TB201-31.75-CC12200.8



InsertScrew
Wrench
CC..120404MS5011AETF20


Dimensions,mmdML
TB...-31.75-...31.751350
