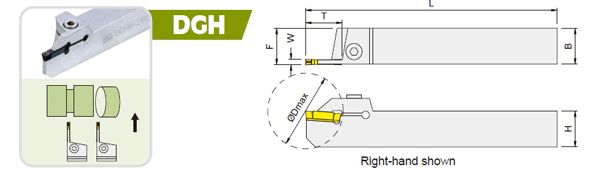

DGH 外徑切槽刀
產品規格
Item code
Dimensions,mm
Width
W(mm)
Insert
Screw
Wrench
Weight
(KG)
H(H1)
B
L
F
T
DGHR-1616K-2-16L
16
16
125
15.2
16
2.0
DGM20CE
HTMT520
ETL25
0.27
DGHR-2020K-2-16L
20
20
125
19.2
HTMT525
0.42
DGHR/L-1616K-2-20L
16
16
125
15.2
20
2.0
DGM20CE
HTMT520
ETL25
0.27
DGHR/L-2020K-2-20L
20
20
125
19.2
HTMT525
0.42
DGHR/L-2020K-3-12L
20
20
125
18.8
12
3.0
DGM30CT
HTMT525
ETL25
0.42
DGHR/L-2525M-3-12L
25
25
150
23.8
0.78
DGHR/L-1616K-3-16L
16
16
125
14.8
16
3.0
DGM30CT
DGJ30CTM
HTMT520
ETL25
0.27
DGHR/L-2020K-3-16L
20
20
125
18.8
HTMT525
0.42
DGHR/L-2525M-3-16L
25
25
150
23.8
0.78
DGHR/L-1616K-3-20L
16
16
125
14.8
20
3.0
DGM30CT
DGJ30CTM
HTMT520
ETL25
0.27
DGHR/L-2020K-3-20L
20
20
125
18.8
HTMT525
0.42
DGHR/L-2525M-3-20L
25
25
150
23.8
0.78
DGHR/L-1616K-3-25L
16
16
125
14.8
25
3.0
DGM30CE
DGJ30CTM
HTMT520
ETL25
0.27
DGHR/L-2020K-3-25L
20
20
125
18.8
HTMT525
0.42
DGHR/L-2525M-3-25L
25
25
150
23.8
0.78
DGHR-3232P-3-25L
32
32
170
30.8
1.43
DGHR/L-1616K-4-20L
16
16
125
14.3
20
4.0
DGM40CT
DGJ40CTM
HTMT520
ETL25
0.27
DGHR/L-2020K-4-20L
20
20
125
18.3
HTMT525
0.42
DGHR/L-2525M-4-20L
25
25
150
23.3
0.78
DGHR/L-1616K-4-25L
16
16
125
14.3
25
4.0
DGJ40CE
HTMT520
ETL25
0.27
DGHR/L-2020K-4-25L
20
20
125
18.3
HTMT525
0.42
DGHR/L-2525M-4-25L
25
25
150
23.3
0.78
DGHR-3232P-4-25L
32
32
170
30.3
1.43
DGHR/L-1616K-5-25L
16
16
125
13.95
25
5.0
DGM50CT
HTMT520
ETL25
0.27
DGHR/L-2020K-5-25L
20
20
125
17.95
HTMT525
0.42
DGHR/L-2525M-5-25L
25
25
150
22.95
0.78
被切削材
Workpiece material
Steel 鋼
P
Stainless steel
不鏽鋼
M
Cast iron 鑄鐵
K
Non-ferrous metal
非鐵金屬
N
Insert Shape
Description
GRADE 材質
Dimensions,mm
Coated 塗層
GT25
GV65
MW925
W
L
H
Re
DGM 30CT
3
20
5
0.4
DGM 40CT
4
20
5
0.4
DGM 50CT
5
25
6
0.4
DGM 30CE
3
25
5
0.2
DGJ 30CTM
3
20
5
0.4
DGJ 40CTM
4
20
5
0.4
DGJ 30CEM
3
25
5
0.2
DGJ 40CE
4
25
6
0.2
