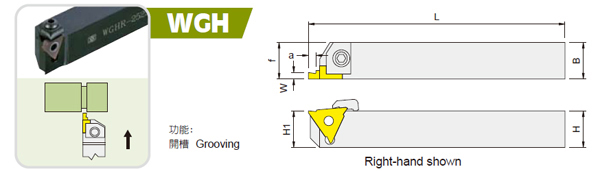

WGH 外徑切槽刀


產品規格
Item codeDimensions,mmInsertClampSpringScrewWrenchWeight
(KG)
H
(H1)		BLFWClampSpringScrewWrench
WGHR/L-2020K-33152020125201.25~2.3MGTR/L 33125-33400MTK1R/LMES3HTR623PL400.42
WGHR/L-2020K-33232020125202.3~3.30.42
WGHL-2020K-33332020125203.3~4.00.42
WGHL-2525M-33152525150251.25~2.30.78
WGHL-2525M-33232525150252.3~3.30.78
WGHL-2525M-33332525150253.3~4.00.78
WGHR/L-1616K-43151616125161.25~2.3MGTR/L 43125-43470MTK1R/LMES3HTR623PL400.27
WGHR -1620K-43151620125201.25~2.30.31
WGHR/L-1616K-43231616125162.3~3.30.27
WGHR/L-2020K-43152020125201.25~2.30.42
WGHR/L-2020K-43232020125202.3~3.30.42
WGHR/L-2020K-43332020125203.3-4.70.42
WGHR/L-2525M-43152525150251.25~2.30.78
WGHR/L-2525M-43232525150252.3~3.30.78
WGHR/L-2525M-43332525150253.3-4.70.78





Description GRADE Material Insert Shape Dimensions,mm
NX2525 G20PT
R  L R  L W ±0.025 A R Ic s
MGTR/L 33125          Insert Shape 1.25 1.2 0.2 9.525 4.76
33145         1.45 1.5 0.2 9.525 4.76
33150         1.5 3.0 0.2 9.525 4.76
33175         1.75 3.0 0.2 9.525 4.76
33200         2.0 3.0 0.2 9.525 4.76
33230         2.3 3.0 0.2 9.525 4.76
33250         2.5 3.0 0.3 9.525 4.76
33270         2.7 3.0 0.3 9.525 4.76
33280         2.8 3.0 0.3 9.525 4.76
33300         3.0 3.0 0.3 9.525 4.76
33320         3.2 3.0 0.3 9.525 4.76
33330         3.3 3.0 0.3 9.525 4.76
33350         3.5 3.0 0.3 9.525 4.76
33400         4.0 3.0 0.3 9.525 4.76
33470         4.7 3.0 0.4 9.525 4.76
MGTR/L  43125          Insert Shape 1.25 1.2 0.2 12.7 4.76
43145         1.45 1.5 0.2 12.7 4.76
43150         1.5 3.0 0.2 12.7 4.76
43175         1.75 3.0 0.2 12.7 4.76
43200 li   li   2.0 3.0 0.2 12.7 4.76
43230         2.3 3.0 0.2 12.7 4.76
43250     li   2.5 4.5 0.3 12.7 4.76
43260         2.6 4.5 0.3 12.7 4.76
43270         2.7 4.5 0.3 12.7 4.76
43280         2.8 4.5 0.3 12.7 4.76
43300     li   3.0 4.5 0.3 12.7 4.76
43320         3.2 4.5 0.3 12.7 4.76
43330         3.3 4.5 0.3 12.7 4.76
43350         3.5 4.5 0.3 12.7 4.76
43400         4.0 4.5 0.3 12.7 4.76
43420         4.2 4.5 0.4 12.7 4.76
43430         4.3 4.5 0.4 12.7 4.76
43450         4.5 4.5 0.4 12.7 4.76
43470         4.7 4.5 0.4 12.7 4.76
