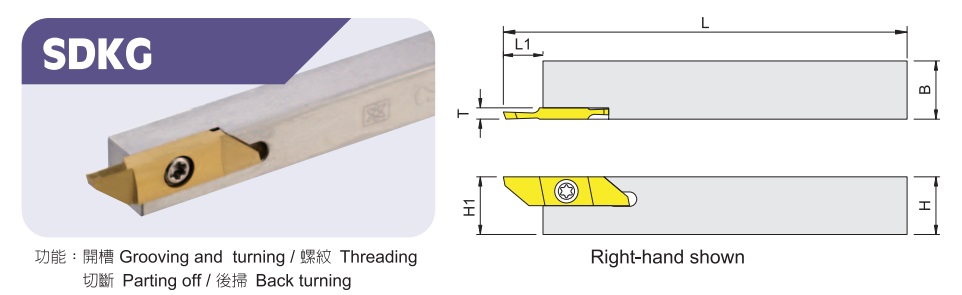

SDKG CNC 走心自動車床刀具
產品規格
Item code
Dimensions,mm
Insert
Screw
Wrench
Weight
(KG)
H
B
L
L1
T
SDKGR/L-1010K-353
10
10
125
11
3
DK..3..
MS4009A
ETF15
0.10
SDKGR/L-1212M-353
12
12
150
11
3
0.17
SDKGR/L-1616M-353
16
16
150
11
3
0.30
SDKGR/L-2020K-353
20
20
125
11
3
0.42
SDKGR/L-2525M-353
25
25
150
11
3
0.74
SDKGR/L-1010K-354
10
10
125
11
4
DK..4..
MS4009A
ETF15
0.10
SDKGR/L-1212M-354
12
12
150
11
4
MS4011A
0.17
SDKGR/L-1616M-354
16
16
150
11
4
0.30
SDKGR/L-2020K-354
20
20
125
11
4
0.42
SDKGR/L-2525M-354
25
25
150
11
4
0.74
被切削材
Workpiece material
Steel 鋼
P
Stainless steel 不鏽鋼
M
Cast iron 鑄鐵
K
Non-ferrous metal 非鐵金屬
N
Insert Shape
Description
GRADE 材質
Dimensions,mm
Coated 塗層
Uncoated 無塗層
GT29
GA49
GX06
S
W
RE/RC
L2
K
Pitch
(mm)
DKTR-4305510
4
3.0
0.1
6
55
0.1-3
DKTR-4206005
2.0
0.05
60
0.05-2
DKTR-4306010
3.0
0.1
0.1-3
DKTR-4206005
2.0
0.05
0.05-2
DKTL-4306010
3.0
0.1
0.1-3
DKTL-4306020
3.0
0.2
0.2-3
DKRR-4050R25
4
1.0
0.50
2.5
DKRR-4075R50
1.5
0.75
5.0
DKRR-4100R60
2.0
1.00
6.0
DKRR-4125R80
2.5
1.25
8.0
DKRR-4150R80
3.0
1.50
8.0
DKRR-4175RA0
3.5
1.75
10.0
DKRR-4200RA0
4.0
2.00
10.0
DKRL-4050R25
4
1.0
0.50
2.5
DKRL-4075R50
1.5
0.75
5.0
DKRL-4100R60
2.0
1.00
6.0
DKRL-4125R80
2.5
1.25
8.0
DKRL-4150R80
3.0
1.50
8.0
DKRL-4175RA0
3.5
1.75
10.0
DKRL-4200RA0
4.0
2.00
10.0
DKGR-4100-1025
4
1.0
0.1
2.5
DKGR-4150-1030
1.5
3.0
DKGR-4200-1040
2.0
4.0
DKGR-4250-1060
2.5
6.0
DKGR-4300-1080
3.0
8.0
DKGL-4100-1025
4
1.0
0.1
2.5
DKGL-4150-1030
1.5
3.0
DKGL-4200-1040
2.0
4.0
DKGL-4250-1060
2.5
6.0
DKGL-4300-1080
3.0
8.0
DKGR-4100-1025P
4
1.0
0.1
2.5
DKGR-4150-1030P
1.5
3.0
DKGR-4200-1040P
2.0
4.0
DKGR-4250-1060P
2.5
6.0
DKGR-4300-1080P
3.0
8.0
被切削材
Workpiece material
Steel 鋼
P
Stainless steel 不鏽鋼
M
Cast iron 鑄鐵
K
Non-ferrous metal 非鐵金屬
N
Insert Shape
Description
GRADE 材質
Dimensions,mm
Coated 塗層
Uncoated 無塗層
GT29
GA49
GX06
S
W
RE/RC
L2
K
DKBR-33005
3
3.0
0.05
8.5
35
DKBR-33010
0.1
DKBR-33020
0.2
DKBR-43005
4
3.0
0.05
8.5
35
DKBR-43010
0.1
DKBR-43020
0.2
DKBR-44005
4
4.0
0.05
8.5
35
DKBR-44010
0.1
DKBR-44020
0.2
DKBL-33005
3
3.0
0.05
8.5
35
DKBL-33010
0.1
DKBL-33020
0.2
DKBL-43005
4
3.0
0.05
8.5
35
DKBL-43010
0.1
DKBL-43020
0.2
DKBL-44005
4
4.0
0.05
8.5
35
DKBL-44010
0.1
DKBL-44020
0.2
DKCR-3150R-1085
3
1.5
0.1
8.5
15
DKCR-3200R-10A5
2.0
10.5
DKCR-3250R-10A5
2.5
DKCR-3300R-10A5
3.0
DKCL-3150L-1085
3
1.5
0.1
8.5
15
DKCL-3200L-10A5
2.0
10.5
DKCL-3250L-10A5
2.5
DKCL-3300L-10A5
3.0
DKPR-3150R-1085
3
1.5
0.1
8.5
15
DKPR-3200R-10A5
2.0
10.5
DKPR-3250R-10A5
2.5
DKPR-3300R-10A5
3.0
DKPL-3150L-1085
3
1.5
0.1
8.5
15
DKPL-3200L-10A5
2.0
10.5
DKPL-3250L-10A5
2.5
DKPL-3300L-10A5
3.0
