NC50~NC60刀套
產品規格
無水孔
Non-coolant
Shape
Dimensions,mm
Weight
(KG)
d
D
D1
L
H
M
NC5008

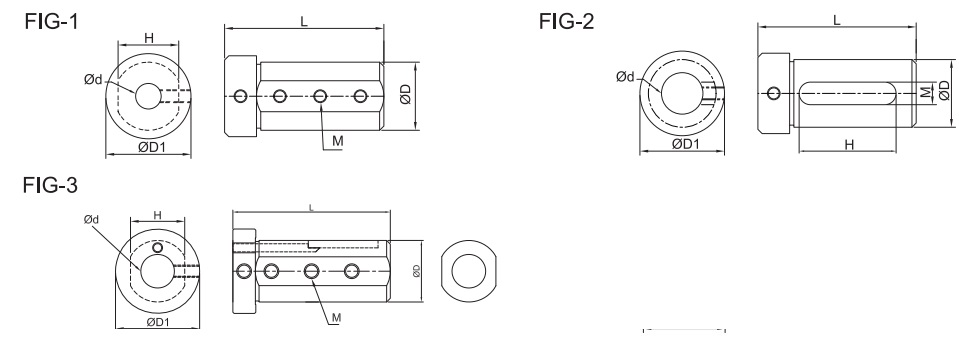

FIG-1
8
50
58
100
48
M8
1.60
NC5010
FIG-1
10
1.59
NC5012
FIG-1
12
1.56
NC5014
FIG-1
14
1.53
NC5016
FIG-1
16
1.50
NC5018
FIG-1
18
1.46
NC5020
FIG-1
20
1.40
NC5025
FIG-1
25
1.27
NC5032
FIG-2
32
77
14
0.97
NC5040
FIG-2
40
0.71
水孔
coolant
Shape
Dimensions,mm
Weight
(KG)
d
D
D1
L
H
M
NEW
NC50B08A
FIG-3
8
50
58
115
48
M8
1.81
NEW
NC50
B
10A
FIG-3
10
1.76
NEW
NC50B12A
FIG-3
12
1.74
NEW
NC50B16A
FIG-3
16
1.68
NEW
NC50B20A
FIG-3
20
1.58
NEW
NC50B25A
FIG-3
25
1.42
NEW
NC50B32A
FIG-3
32
1.14
NEW
NC50B40※
FIG-2
40
92
14
0.72
※表示無中心出水Non-coolant
無水孔
Non-coolant
Shape
Dimensions,mm
Weight
(KG)
d
D
D1
L
H
M
NC6020
FIG-1
20
60
68
120
57
M8
2.45
NC6025
FIG-1
25
2.29
NC6032
FIG-1
32
2.00
NC6040
FIG-1
40
1.57
NC6050
FIG-2
50
102
14
0.89
