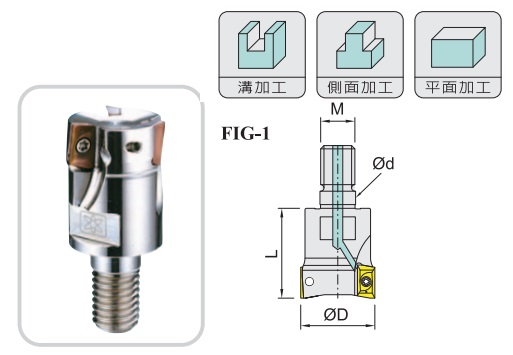

AHU-A 直角端銑刀鎖牙式


產品規格
Item codeDimensions, mmTeethInsertSpare
parts		Weight
KG
無出水Non-coolant水孔CoolantDdLM
AHU10-162-MD14AHU10-162-AMD14168.525M82JDMT1003..R..①0.04
AHU10-172-MD14AHU10-172-AMD14170.05
AHU10-203-MD18AHU10-203-AMD182010.530M1030.07
AHU10-213-MD18AHU10-213-AMD18210.07
AHU10-253-MD23AHU10-253-AMD232512.532M1230.13
AHU10-254-MD23AHU10-254-AMD232540.12
AHU10-263-MD23 2630.14
AHU10-264-MD23 2640.14
AHU10-325-MD29AHU10-325-AMD293217.043M1650.26
AHU10-355-MD29

AHU10-355-AMD29

35

5

0.26

AHU15-252-MD23 2512.535M122JDMT1505..R..②0.14
AHU15-262-MD23 260.14
AHU15-323-MD29AHU15-323-AMD293217.043M1630.22
AHU15-332-MD29 3320.25
AHU15-353-MD29 3530.25
AHU15-404-MD29 4040.27



InsertSpare partsScrewWrench
JDMT1003..R①MS2506AETF09
JDMT1505..R②MS4009AETF15



被切削材
Workpiece material		Steel 鋼P
Stainless steel 不鏽鋼M
Cast iron 鑄鐵K
Non-ferrous metal 非鐵金屬N
Insert ShapeDescriptionGRADE 材質Dimensions,mm
Coated 塗層Uncoated 無塗層
PTH30EWH10ABSRe
JDMT100308R 10.86.13.50.8
JDMT100304R-FA
 10.86.13.50.4
JDMT150508R 15.89.150.8
JDMT150504R-FA 15.89.150.4
