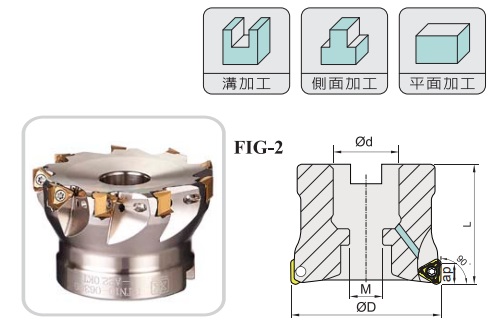

PTN-B 直角端銑刀刀盤
產品規格
Item code
Dimensions,mm
Teeth
Insert
Spare
Parts
Weight
KG
無水孔Non-Coolant
水孔Coolant
D
d
L
M
ap
PTN10-04006-16.0
PTN10-04006-A16.0
40
16.0
40
8.5
5
6
TNGX1004..
①
0.25
PTN10-05007-22.0
PTN10-05007-A22.0
50
22.0
40
11
7
0.38
PTN10-06309-22.0
PTN10-06309-A22.0
63
9
0.79
PTN10-08010-27.0
PTN10-08010-A27.0
80
27.0
50
13
10
1.20
PTN16-04004-16.0T※
PTN16-04004-A16.0T
※
40
16.0
40
8.5
10
4
TNGX1606..
③
0.27
PTN16-05005-22.0T
PTN16-
05005
-A
22
.0T
50
22.0
11
5
0.51
PTN16-06306-22.0T
PTN16-
06306
-A
22
.0T
63
6
0.68
PTN16-08007-27.0T
PTN16-08007-A27.0T
80
27.0
50
13
7
1.21
PTN16-10008-32.0T
100
32.0
18
8
1.61
PTN16-12509-40.0T
125
40.0
63
22
9
3.32
160
56.1
10
4.68
※表示另附刀把螺絲 HTM838HS ( ※The mill equips with a cap screw HTM838HS )
Insert
Spare parts
Screw
Wrench
TNGX1004..
①
MS2507E
ETF08
TNGX1606..
③
MS4012Q
ETF15
被切削材
Workpiece material
Steel 鋼
P
Stainless steel 不鏽鋼
M
Cast iron 鑄鐵
K
Non-ferrous metal 非鐵金屬
N
Hardened steel 高硬度材
H
Insert Shape
Description
GRADE 材質
Dimensions,mm
Coated 塗層
Uncoated
無塗層
M8340
M8330
HF7
D
I
T
Re
TNGX100416SR-M
6.0
10.39
4.09
1.6
TNGX100404SR-F
0.4
TNGX100404FR-FA
0.4
TNGX100408FR-FA
0.8
TNGX160604SR-M
9.525
16.5
6.58
0.4
TNGX160608SR-F
0.8
TNGX160604FR-FA
0.4
