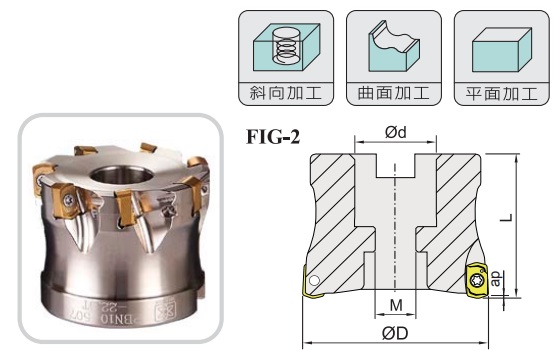

PBN-B 高進給銑刀刀盤


產品規格

Metric specifications

Item codeDimensions,mmTeethInsertSpare partsWeight
KG
無水孔 Non-Coolant水孔CoolantDdLMap
PBN10-05007-22.0T 5022.040111.07BNGX10T03..①0.43


InsertSpare partsScrewWrench
BNGX10T3..①MS2506EETF08



編制CAM程序時，請將設為PBN圓弧頭銑刀，此時的近似刀尖圓弧半徑RE值及切削殘留量
When using the PBN, please program the approximate radius as indicated. The approximate uncut portions for the program are as follows.
刀片大小
Item size		近似RE(mm) Approx. RE殘留量K(mm) Remains
BNGX10T03..1.60.4



被切削材
Workpiece material		Steel 鋼P
Stainless steel 不銹鋼M
Cast iron 鑄鐵K
Non-ferrous metal 非鐵金屬N
Insert ShapeDescription
GRADE 材质Dimensions,mm
Coated塗層
M8330ABSRe
BNGX10T308SR-HM9.925.83.9--
