ORDERING CODE規格 |
Pitch螺距 |

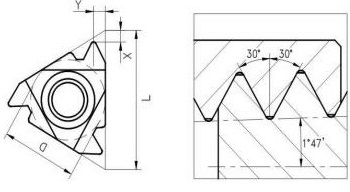

Dimension基本尺寸 |
|
External |
Internal |
MM |
TPI |
L |
D |
Y |
X |
| |
06NR 27 NPT |
|
27 |
6 |
3.968 |
0.6 |
0.6 |
| |
08NR 27 NPT |
|
27 |
8 |
4.76 |
0.6 |
0.6 |
| |
08NR 18 NPT |
|
18 |
8 |
4.76 |
0.6 |
0.6 |
| |
11NR 27 NPT |
|
27 |
11 |
6.35 |
0.8 |
0.7 |
| |
11NR 18 NPT |
|
18 |
11 |
6.35 |
1.0 |
0.8 |
| |
11NR 14 NPT |
|
14 |
11 |
6.35 |
1.0 |
0.8 |
| |
16NR 27 NPT |
|
27 |
16
|
9.525
|
0.8 |
0.7 |
| |
16NR 18 NPT |
|
18 |
1.0 |
0.8 |
| |
16NR 14 NPT |
|
14 |
1.2 |
0.9 |
| |
16NR 11.5NPT |
|
11.5 |
1.5 |
1.1 |
| |
27NR 8 NPT |
|
8 |
1.8 |
3.1 |
|
