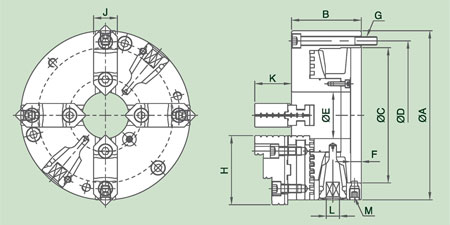

| 尺寸圖 |
 |
 |
|
| 型式/規格 |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
最高迴轉速 |
把握範圍 |
| 外徑把握 |
內徑把握 |
| 4DAKT-08 |
200 |
82.5 |
160 |
176 |
55 |
12 |
3-M10×1.5P |
82 |
28 |
43 |
11 |
4-M12×1.75P |
3500 |
O8-O205 |
O59-O190 |
| 4DAKT-10 |
250 |
91 |
200 |
224 |
76 |
13 |
3-M12×1.75P |
102 |
35 |
54.5 |
12 |
4-M12×1.75P |
2600 |
O12-O265 |
O78-O249 |
| 4DAKT-12 |
315 |
103 |
260 |
286 |
103 |
14 |
3-M16×2P |
117.5 |
40 |
56.5 |
14 |
4-M12×1.75P |
2200 |
O15-O323 |
O86-O296 |
| 4DAKT-15 |
400 |
122 |
330 |
362 |
136 |
15 |
3-M16×2P |
150 |
50 |
74.5 |
17 |
4-M12×1.75P |
1600 |
O30-O419 |
O124-O396 | |
|
