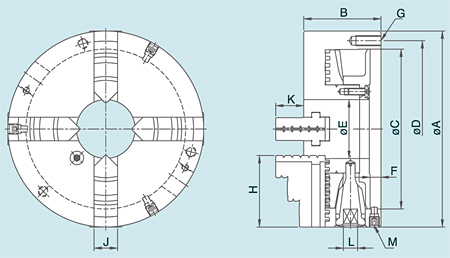

| 尺寸圖 |
 |
 |
|
 |
| 規格表 |
單位/mm |
| 型式 / 規格 |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
| FCT-07 |
193 |
85 |
155 |
172 |
58 |
12 |
3-M10×1.5P |
75 |
24 |
28.5 |
11 |
| FCT-09 |
233 |
92 |
190 |
210 |
70 |
12.5 |
3-M12×1.75P |
85 |
28 |
33 |
12 |
| FCT-10 |
275 |
98 |
230 |
250 |
89 |
12.5 |
3-M12×1.75P |
98 |
30 |
38 |
12 |
|
FCT-12 |
310 |
111 |
260 |
285 |
105 |
14 |
3-M12×1.75P |
110 |
32 |
45 |
14 | |
| 型式 / 規格 |
M |
最高迴轉數
r.p.m(min-1) |
把握範圍 |
淨重 (kg) |
| 外徑把握 |
內徑把握 |
| FCT-07 |
3-M12×1.75P |
3500 |
O4~O1 80
|
O56~O170 |
13.2 |
| FCT-09 |
3-M12×1.75P |
2900 |
O5~O220
|
O62~O210 |
20.7 |
| FCT-10 |
3-M12×1.75P |
2500 |
O6~O260
|
O70~O250 |
29.8 |
|
FCT-12 |
3-M12×1.75P |
2200 |
O10~O300 |
O86~O290 |
44.4 | |
|
