Universal type Multiple Spindle Head

【Universal type Multiple Spindle Head】

Highly Efficient ; Precision ; Stabile and Noiseless !

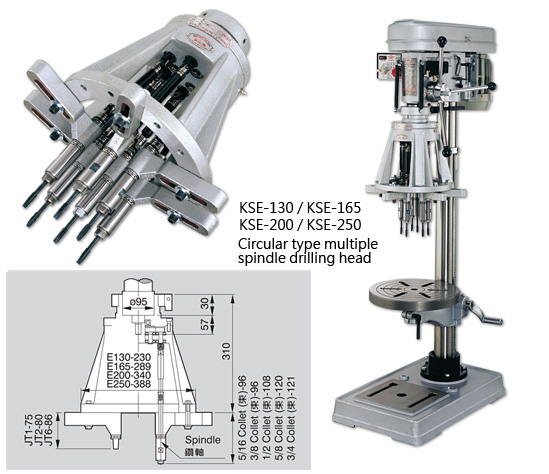

KSE-130 / KSE-165 / KSE-200 / KSE-250
Circular type multiple spindle machine head.
Notice for use
To ensure the service life of the universal joint, when adjusting the spindle position, the movement range should not exceed 15˚. That means the adjustment amount in front / back and right / left directions should be within 35 mm. This should be combined with the hole distance design when ordering.
unit : mm
MODEL Speed Ratio Max. Diameter Number of Spindles
KSE-130 Circular 1:1 130 2-6
KSE-165 Circular 1:1 165 2-10
KSE-200 Circular 1:1 200 2-14
KSE-250 Circular 1:1 250 2-20
KSE-300 Circular 1:1 300 2-24
Hexangular collets and chucks and other accessories are not included for the above assorted multi-spindle head / King Sang machines.
KSE-110x180 / KSE-140x230 / KSE-140x325 / KSE-300x500
Square type multiple spindle machine head.
unit : mm
MODEL Speed Ratio Max. Diameter Number of Spindles
KSE-110x180 Rectangular 1:1 110x180 2-8
KSE-140x230 Rectangular 1:1 140x230 2-12
KSE-140x325 Rectangular 1:1 140x325 2-18
KSE-145x580 Rectangular 1:1 145x580 2-32
KSE-180x480 Rectangular 1:1 180x480 2-26
KSE-200x320 Rectangular 1:1 200x320 2-20
KSE-260x400 Rectangular 1:1 260x400 2-30
KSE-300x330 Rectangular 1:1 300x330 2-26
KSE-300x500 Rectangular 1:1 300x500 2-38
Hexangular collets and chucks and other accessories are not included for the above assorted multi-spindle head / King Sang machines.
